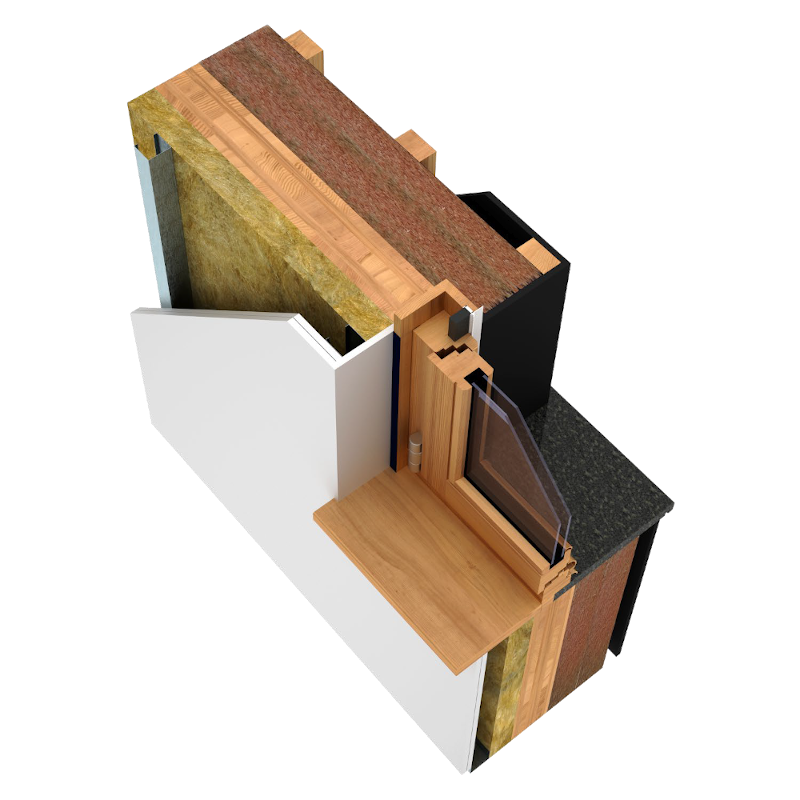

X LAM
construction technology with ventilated facade
The peculiarity of this solution is to build a structure with a 5-layer X-LAM panel unit, which guarantees great perimeter solidity, with an external insulation coating made of verified natural materials to ensure comfort both in summer and in winter. By experience we always apply a ventilation cycle, using a fiber cement sheet, thus ensuring external mechanical rigidity.
The structure is as follows, from inside to outside:
- gypsum slabs
- interspace for systems
- wood fiber density 55kg/m2
- 5-layer X-LAM panel
- natura therm wood fiber 120kg/m2
- waterproofing solitex front wa
- impregnated lamellar strips
- reinforced fiber cement slab

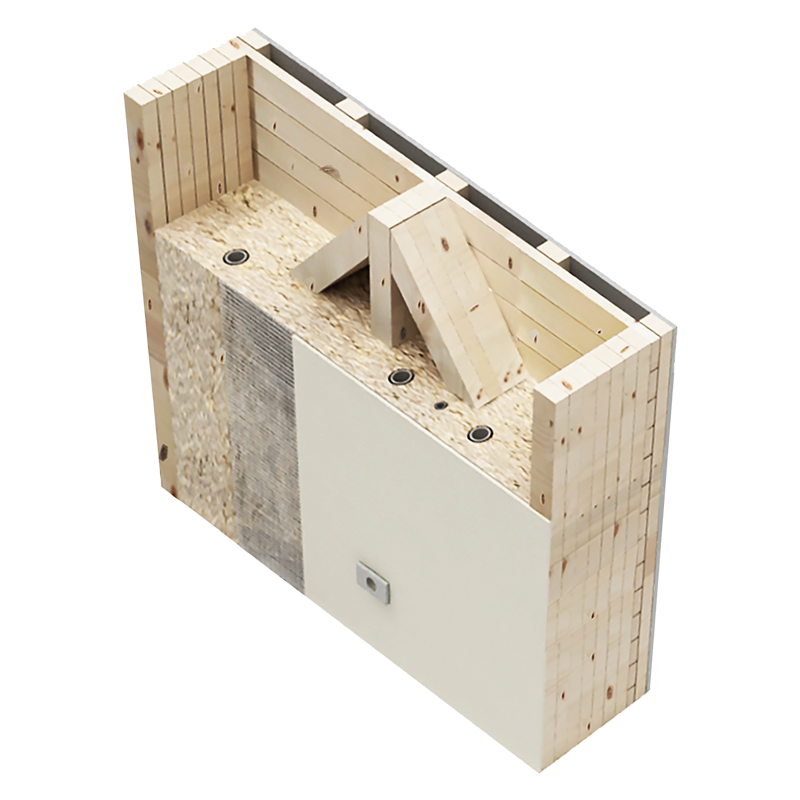

LIME AND HEMP
construction technology with ventilated wall
The peculiarity of this solution is to build a frame structure, prefabricated in our factory, in laminated wood with lime and hemp filling, which guarantee great perimeter solidity, with an external insulation coating made of natural materials verified to ensure comfort in both summer and winter. From experience we always apply a ventilation cycle, using a fiber cement sheet, thus ensuring external mechanical rigidity.
The structure is as follows, from inside to outside:
- lime plaster
- lime and hemp filling
- laminated wood frame 28cm
- fir wood boards for containing the insulation
- waterproofing solitex front wa
- impregnated lamellar strips
- reinforced fiber cement slab

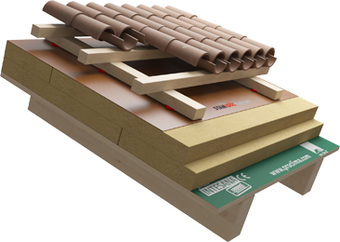

Master Roof
The structure is as follows, from inside to outside:
- laminated wood structure
- matchboard
- reinforcement panel osb/3
- hygro-variable steam brake and air barrierintesana
- Naturatherm e Naturaplus wood fiber insulation
- waterproof and breathable heat-sealed stamisol package complete with special pieces
- raw planks for ventilation
- raw planks for shelf holder
- roof covering
lifetime warranty
insulation and sealing
Insulation and sealing
Naturalia-BAU has managed to obtain an optimal combination between its line of innovative products for air tightness and Naturaltherm insulators.
The sheets placed above the insulation are extremely breathable and resistant to UV rays, while the airtight sheaths, installed under the insulation, regulate breathability thanks to their hygro-variable characteristic.
Various benefits
The Naturalia-BAU "system guarantee" applies to all applications of external insulation and sealing of the building envelope, even in the case of technically complex installations. In the event of damaged or malfunctioning material, Naturalia-BAU takes care of all the costs necessary for the replacement of its materials, including transport costs and any additional costs due to the need to disassemble the defective components.
Safety for installer, designer and client
Thanks to the new warranty, Naturalia-BAU ensures the quality of its products even in the case of technically complex applications, once again increasing their safety and thus proving to be a reliable and competent partner for craftsmen and designers.
Guaranteed system
The "system warranty" covers all applications and installations that respect the combinations contained in the Naturalia-BAU application matrix. The assumption, of course, is that the products are applied in compliance with the indications contained in the technical documentation made available and the installation made with artful precision.
We are waiting for you at our office to let you touch the solidity of our creations. The technical office is at your disposal for free consultations and quotes.
